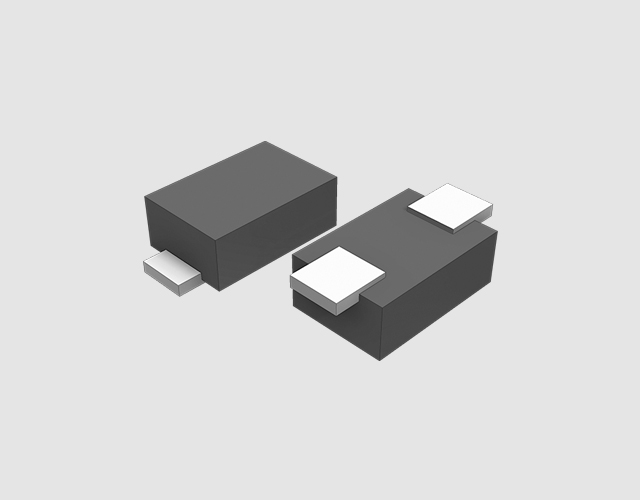

| SMA SCKOTTKY DIODES Low VF肖特基二極管 | |||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | ||
| 1A系列 | |||||
| SS14L | 1.00 | 0.55 | 40.00 | 100.00 | SMA |
| SS16L | 1.00 | 0.65 | 60.00 | 100.00 | |
| SS110L | 1.00 | 0.85 | 100.00 | 100.00 | |
| SMA SCKOTTKY DIODES Low VF肖特基二極管 | |||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | ||
| 1A系列 | |||||
| SS14L | 1.00 | 0.55 | 40.00 | 100.00 | SMA |
| SS16L | 1.00 | 0.65 | 60.00 | 100.00 | |
| SS110L | 1.00 | 0.85 | 100.00 | 100.00 | |
